Dear Forum, I am asked to support the WS2816C (https://datasheet.lcsc.com/lcsc/2012110135_Worldsemi-WS2816C-2121_C965561.pdf) I have selected a Pixel type 16-bit and a solid color white. Just checking with Wireshark I would expect to see 6x 0xFF. However, there are just 3 times 0xFF. What I am missi...

Dear Forum,

What would be the setup for outputting the 5bit brightness adjustment in a separate DMX slot?

Many thanks in advance.

Arjan
http://www.orangepi-dmx.org

Hi Matthieu,

Does this mean that the Windows version is different with respect to outputting DMX data?

The MacOS version is doing it perfectly; only sending the changed universes and then a synchronization package.

The 'issue' on Windows is for both sACN E1.31 and Art-Net.

Thanks, Arjan

Dear Forum, I just noticed yesterday dat madMapper on Windows is sending all universes even when the data is not changed. The macOS version does it correctly by just sending the universes with changed data. Is there a parameter in Windows in order to change the behavior ? Many thanks in advance, Arjan

Team, This is a follow-up for https://forum.garagecube.com/viewtopic.php?f=21&t=33402&p=58309#p58309 Background: TimeCode information is available in the following protocols: SMPTE LTC {can be done with a converter } TCNet MIDI {Already implemented?} AppleMIDI / RTP-MIDI {Already implemented?} Art-N...

@simonegiusti @Fabioquiet

I have a SMPTE LTC reader converter based on the Orange Pi Zero. It is all open source and open hardware.

http://www.orangepi-dmx.org/orange-pi-s ... -converter

This solution might help you connecting your SMPTE LTC signal to MadMapper.

- Arjan

we're adding MTC at the moment, but not SMPTE

Hi Franz, Matt ,

what is the status for the MTC (DIN-MIDI?, Apple/RTP-MIDI?) implementation ?

Thanks, Arjan

It happens since we fixed an issue discovering some devices, before MM was checking the GoodOutput field but some device donnot set the bit 7 (Data is being transmitted) so MM wasn't seing it, so we donnot check the good output field any more, that's why you see universe 0 in latest MadMapper relea...

Dear Forum,

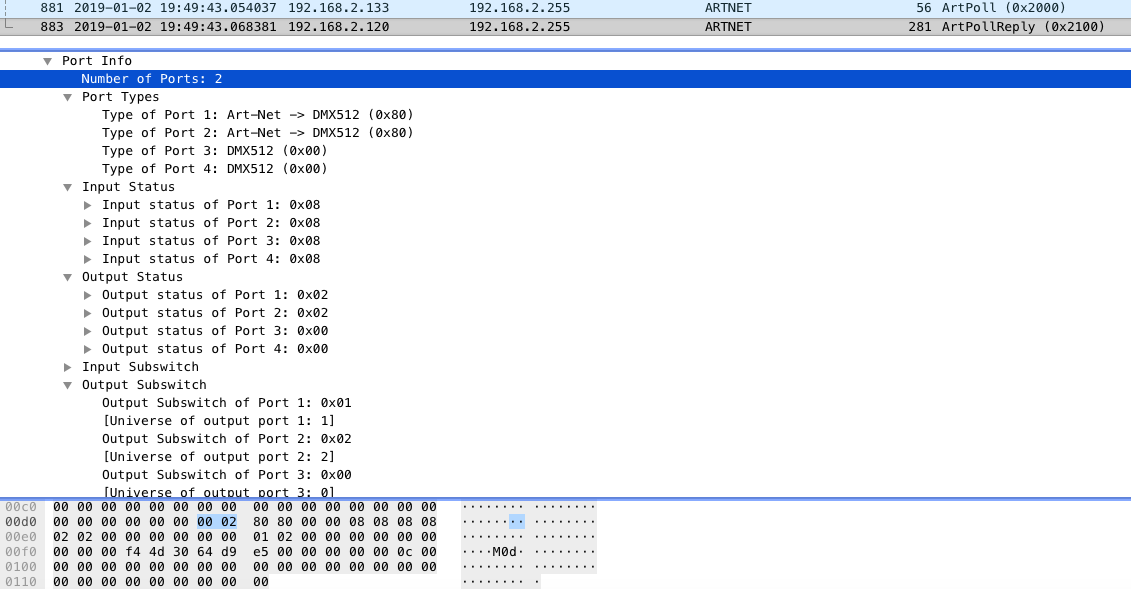

The Art-Net Poll list is given a wrong entry -> Universe 0

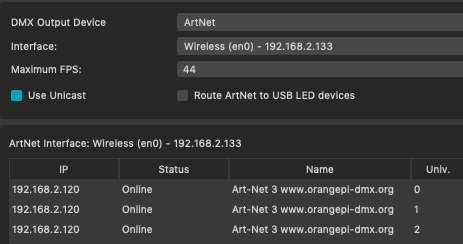

The ArtPollReply is showing 2 ports with Universe 1 & 2. However, madMapper 3.6.4 has 3 entries including Universe 0. The latter is wrong.

- Arjan
http://www.orangepi-dmx.org/allwinner-h3

Dear Forum, I observe that madMapper is not sending the Synchronization Packet. As it does with Art-Net, sending the ArtSync, I am wondering why there is no E1.31 Synchronization Packet? This Synchronization Packet is very important for large installations. Reference : ANSI E1.31 — 2018 Entertainmen...

Dear Forum,

I am working with the Demo version and it is observed that the Art-Net 3 Node's are only showing in the list when their merge mode is set to LTP.

Is there a specific reason why madMapper (Demo) is having this behavior ?

Thanks, Arjan
