Help setting up Arri Skypanel with MadMapper
  • mkofsky
    junior Member
    Posts: 1
    Joined: Mon Oct 16, 2017 6:58 am

    Help setting up Arri Skypanel with MadMapper

    by mkofsky » Mon Oct 16, 2017 7:03 am

    I'm new to MadMapper and trying to figure out how to map the LEDs in my Arri Skypanel. I've done a lot of research but I really cant figure out what I need to do to set this up as a fixture and get MadMapper to communicate with the light.

    I definitely have a good connection to the light because I'm already controlling it from my mac via the light's webpage interface.
  • mad-matt
    garageCube team
    Posts: 599
    Joined: Mon Sep 09, 2013 5:50 pm

    Re: Help setting up Arri Skypanel with MadMapper

    by mad-matt » Mon Oct 23, 2017 10:02 pm

    Are you using ArtNet Output ?
    First check your DMX output settings in preferences. If using a USB-DMX device, just select it. If using ArtNet, select the network adapter to use.

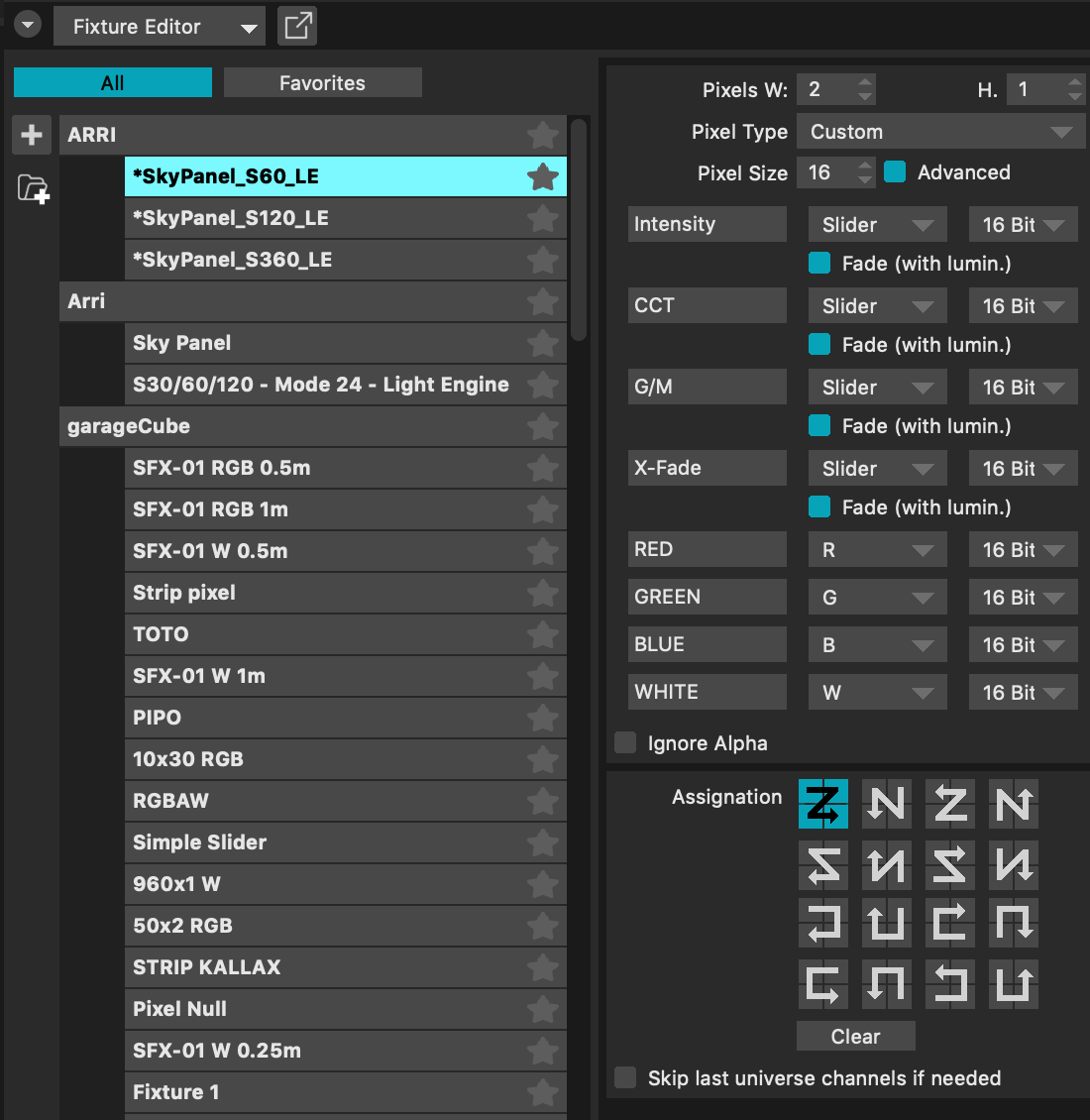

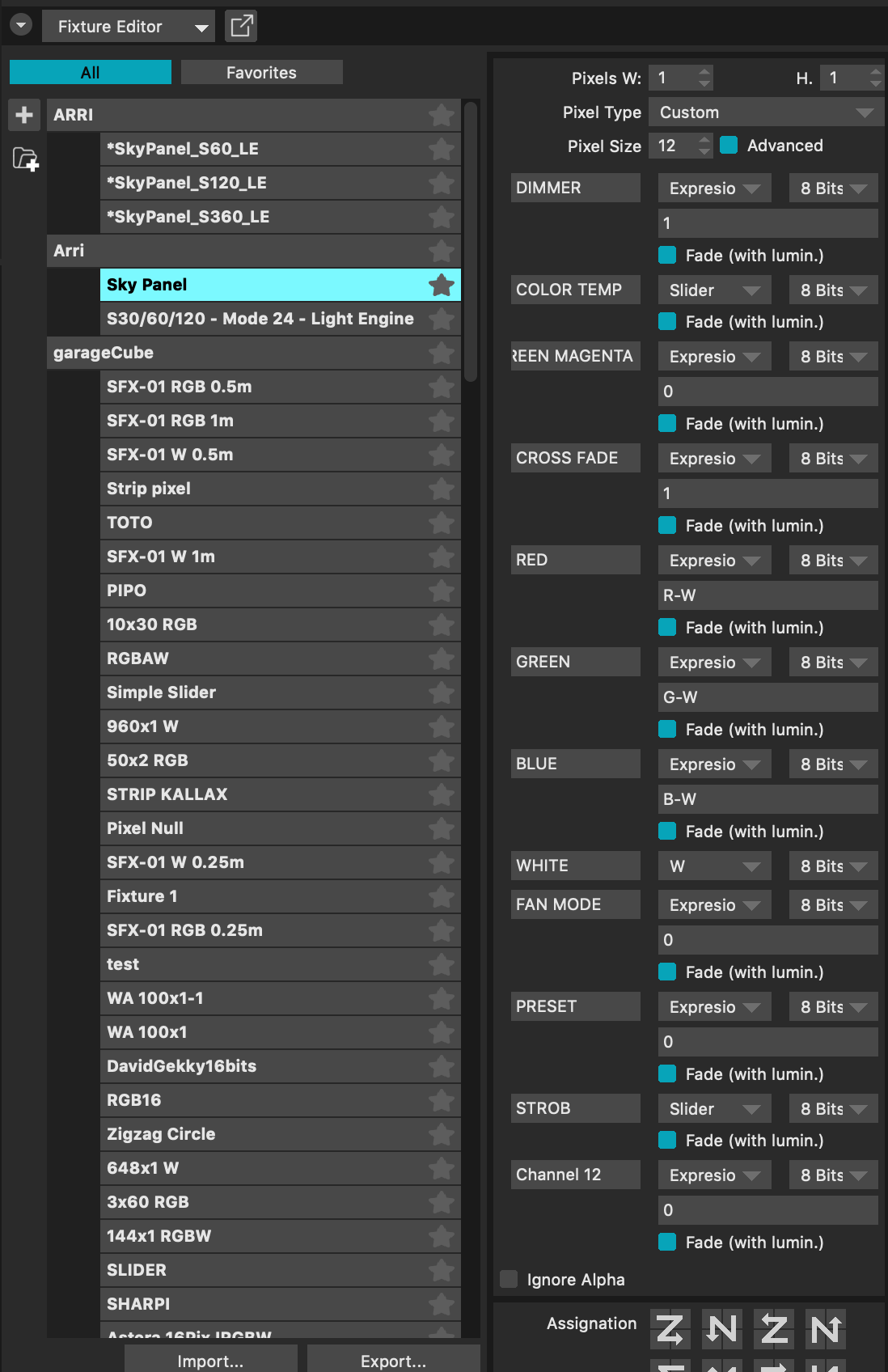

    Then you need to create a DMX fixture (2nd tab on the left - Manage MadLight), then press the top "+" button, it will patch a single pixel (Fixture Library item "Generic - Pixel RGB"). You have to create a fixture definition for your device. If you can tell me what the DMX patching of the device is I can create a fixture for you.
