[twann29]

Hi,
I have a MAC STUDIO M2Max with a thunderbolt 3 SONNET ECHO EXPRESS IIIe chassis equipped with 2 Black Magic Decklink duo 2 PCIe cards.
MadMapper does not see black magic cards. I would like to assign MADMAPPER I/O to Black Magic Decklink SDI I/O.

MILLUMIN sees them as inputs and outputs.

Is there a solution or are BlackMagic cards just not compatible with MADMAPPER ?

Thanks.

[twann29]

By reading old posts, it appears that blacksyphon will allow me to recover inputs and outputs using SYPHON.
I will test tomorrow.
If anyone uses this method, I would like their opinion.

[twann29]

blacksyphon recovers decklink inputs well and can create siphon outputs to route them to decklink outputs.
Everything appears in siphon inputs/outputs in madmapper

It can therefore be an alternative solution for those who have encountered the same problem as me.

Enjoy!

[franz]

We'll look at your issue, thanks for reporting

[twann29]

So,

First of all, thank you for the last update, the 2 BlackMagic Decklink duo 2 cards are recognized in inputs and outputs.

But...

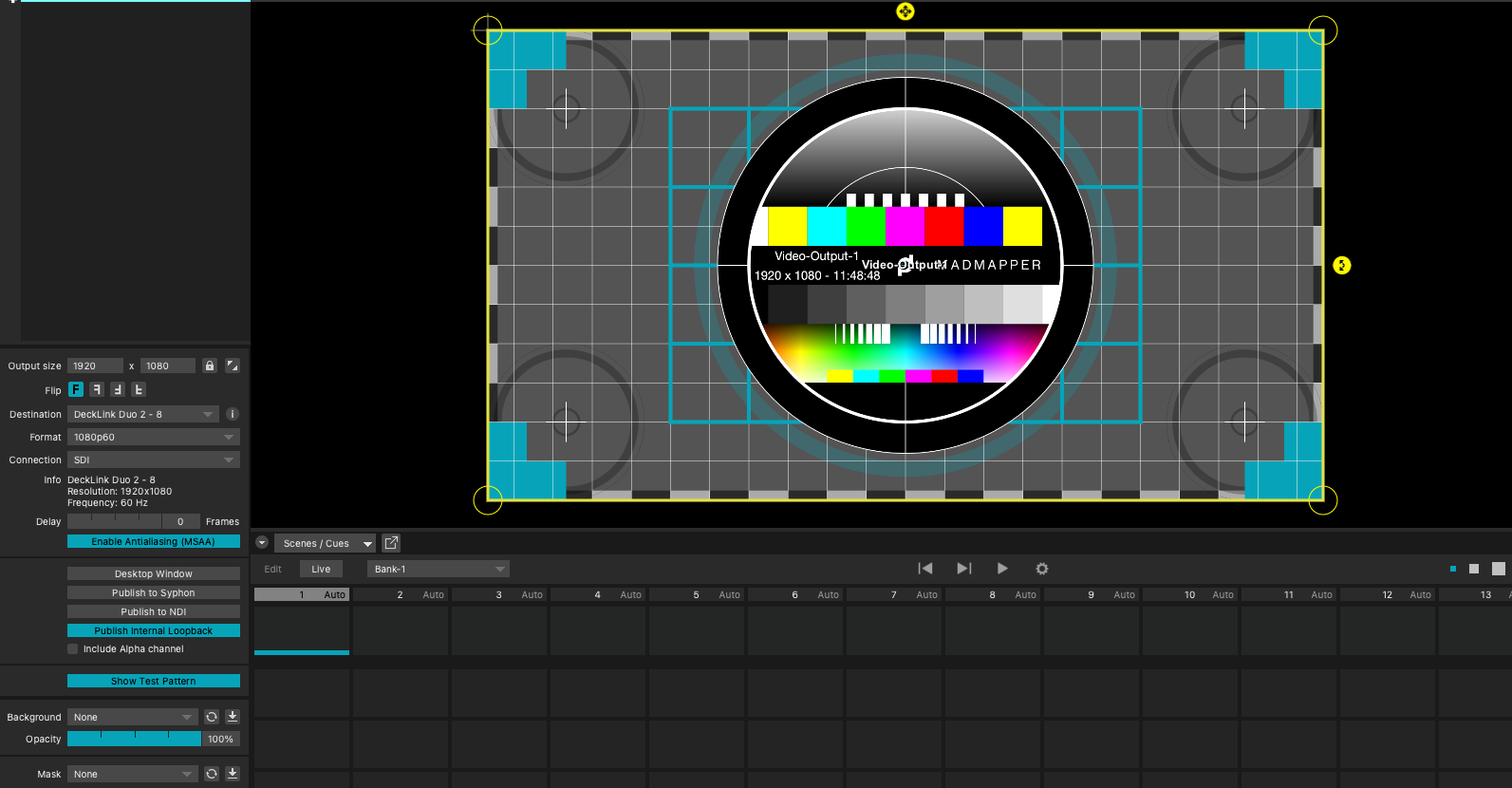

Although I correctly recover the input streams (I can assign an input in a quad and I see my video stream), I do not recover anything in output by assigning the madmapper output to the SDI output of one of the decklink duo 2 where I connected a SAMSUNG TV monitoring screen.

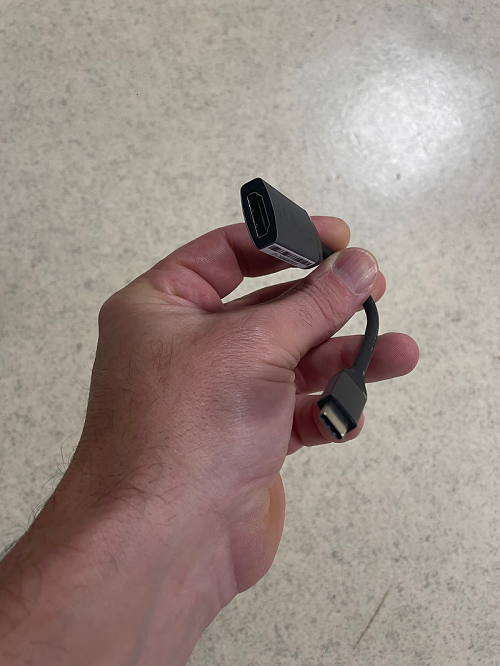

The strangest thing is that, wanting to test in a different way, I connected a USB-C/HDMI adapter to the Macstudio to connect the SAMSUNG monitoring TV (recognized as a secondary screen by MAcOs) but assigning it as output to the MadMapper output, nothing either....

I checked my Madmapper configurations several times, everything seems good to me.

I did tests with Millumin with the same connections and everything works...

I'm lost...
