[zaicik]

The DMX monitor is a great tool to troubleshoot problems.

When manually selecting the number of columns to display, it would be even greater if we had an option to check a "zig zag" option instead of the next line always starting on the left.

While we can mentally rotate or mirror what we see, a zig-zagged pattern is definitely harder to read

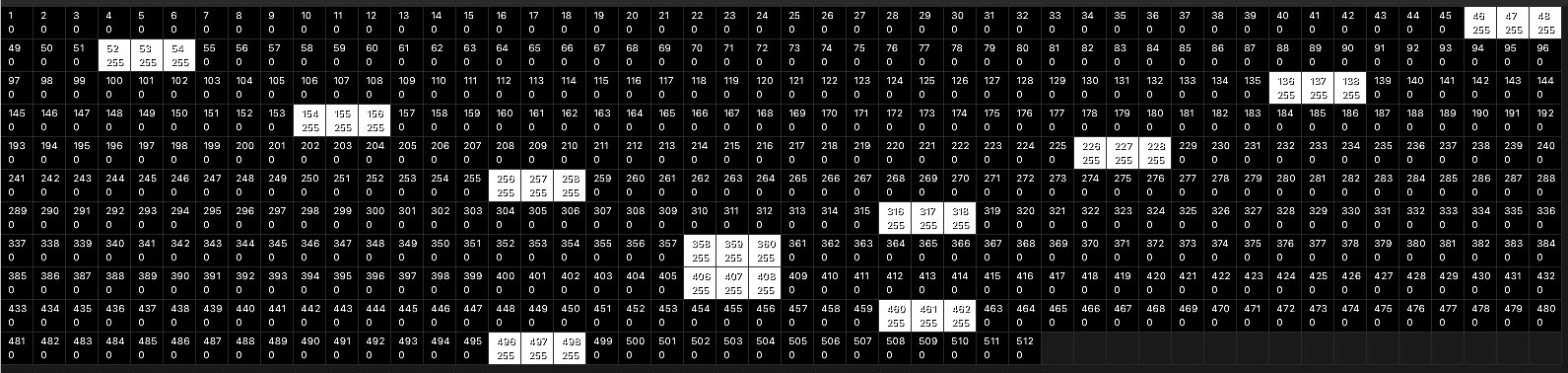

Attached are a screenshot of a zigzag-gin WS2811 pixel matrix and the corresponding DMX monitor view


Cheers !
