AVF decoder janky interactions, turns to solid colors
  • geoffmatters
    activ8 member
    Posts: 55
    Joined: Fri Sep 29, 2017 3:29 am

    AVF decoder janky interactions, turns to solid colors

    by geoffmatters » Fri Jul 13, 2018 12:56 am

    This has been happening since early betas in an unpredictable fashion, and it is super disruptive, but I didn't have a good reliable repro until now.

    AVF sometimes renders video as a random solid color.

    Repro: I have the same footage encoded a MJPG and HAP. Put both in modul8, in two layers, move them left and right so I can watch both at the same time. In the media info tab, verify that MJPG version defaulted to FFMPEG decoder, and HAP is only supported by AVF. Switch the MJPEG clip to use AVF decoder. The hap clip turns to a solid brown.

    Obviously this should never happen, and it is extra odd that decoding of different clips in different layers is not hermetic. The fact that different clips can impact eachother through the decoding library means I have some projects that are very unstable; making simple changes (swap a media in a layer) sometimes totally breaks something somewhere else or later in the performance.
  • geoffmatters
    activ8 member
    Posts: 55
    Joined: Fri Sep 29, 2017 3:29 am

    Re: AVF decoder janky interactions, turns to solid colors

    by geoffmatters » Fri Jul 13, 2018 1:42 am

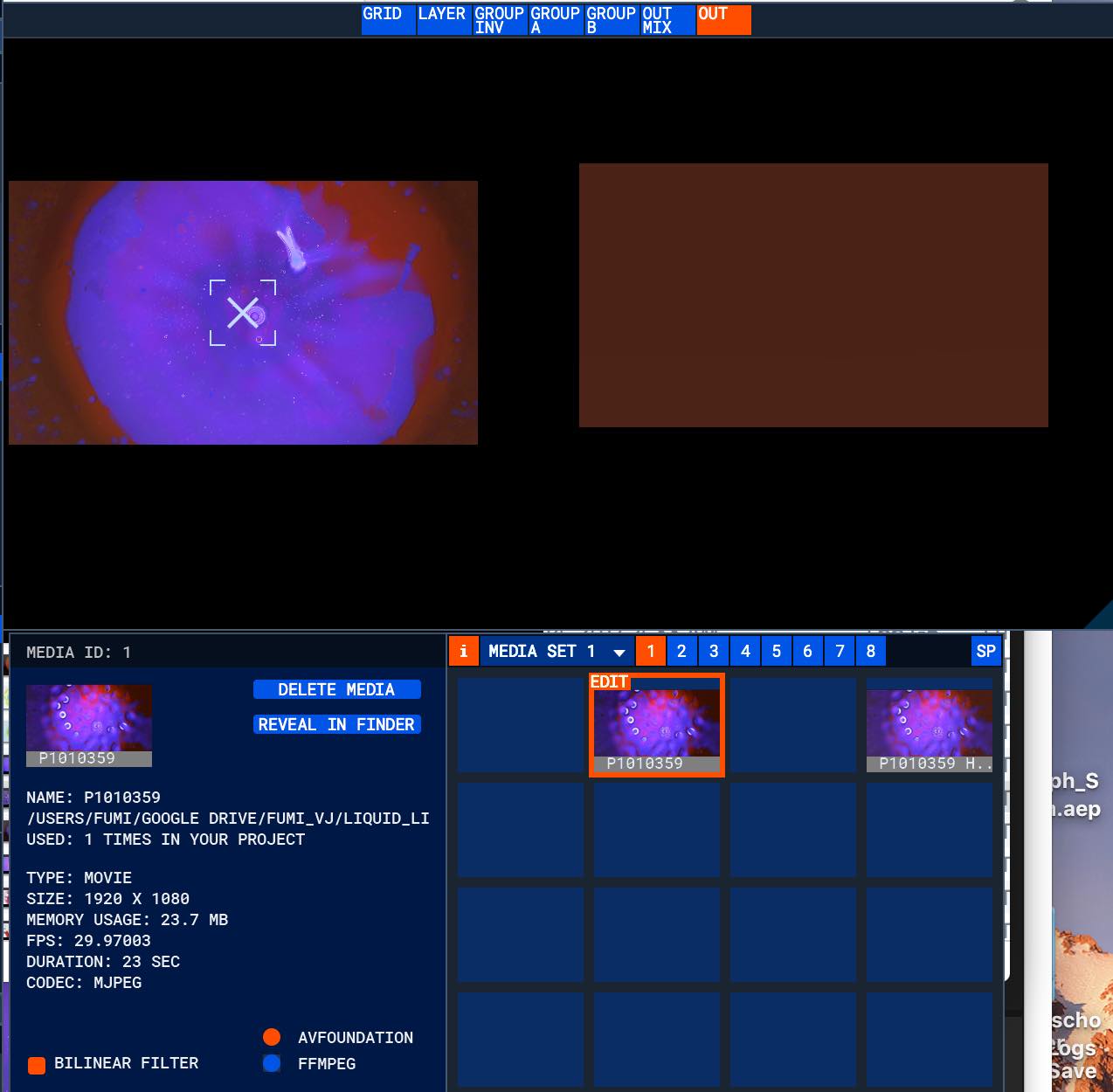

    Screenshot showing the corrupted AVF decoder
    Attachments
    M8 AVF HAP corruption.jpg
    M8 AVF HAP corruption.jpg (108.22 KiB) Viewed 1928 times
  • Pierre Guilluy
    garageCube team
    Posts: 239
    Joined: Mon Oct 12, 2015 1:50 pm

    Re: AVF decoder janky interactions, turns to solid colors

    by Pierre Guilluy » Fri Jul 20, 2018 10:43 am

    I've been trying to reproduce your problem but couldn't using the movie files I have.

    Could you send me a link to your two HAP & MJEG files in a PM?
  • Pierre Guilluy
    garageCube team
    Posts: 239
    Joined: Mon Oct 12, 2015 1:50 pm

    Re: AVF decoder janky interactions, turns to solid colors

    by Pierre Guilluy » Mon Jul 30, 2018 5:12 pm

    I finally could try to reproduce your problem using the files you provided without success: whatever I change the actual player of the MJPEG file doesn't have any effect on the HAP files currently playing.

    What version of macOS are running Modul8 on?
  • Pierre Guilluy
    garageCube team
    Posts: 239
    Joined: Mon Oct 12, 2015 1:50 pm

    Re: AVF decoder janky interactions, turns to solid colors

    by Pierre Guilluy » Tue Jul 31, 2018 1:49 pm

    Also, what GPU are you running Modul8 on?
  • geoffmatters
    activ8 member
    Posts: 55
    Joined: Fri Sep 29, 2017 3:29 am

    Re: AVF decoder janky interactions, turns to solid colors

    by geoffmatters » Wed Aug 01, 2018 6:41 am

    Thanks for looking into it. Too bad it isn't an easy repro on your end.

    The computer I did that test on was OSX 10.12.6 on MacBook Pro (15-inch, 2016) [the touchbar one] with Radeon Pro 455 and Intel HD Graphics 530.

    I don't have that computer with me now, but I'll see if I can repro on a different computer and send a zip file.

    I *think* I had restarted modul8, but if I did cmd-N for new project, then probably the decoding helper process stuck around, and there might be a deeper history involved in producing the bad output.
  • geoffmatters
    activ8 member
    Posts: 55
    Joined: Fri Sep 29, 2017 3:29 am

    Re: AVF decoder janky interactions, turns to solid colors

    by geoffmatters » Sat Aug 04, 2018 11:10 am

    I spent a while trying to repro on my MacBook Pro (Retina, 15-inch, Mid 2015) AMD Radeon R9 M370X 2048 MB Intel Iris Pro 1536 MB

    Haven't been able to. In a few weeks i'll have access to the touchbar model on which I made the above repro.
  • geoffmatters
    activ8 member
    Posts: 55
    Joined: Fri Sep 29, 2017 3:29 am

    Re: AVF decoder janky interactions, turns to solid colors

    by geoffmatters » Fri Aug 17, 2018 7:50 am

    I again have access to the computer that repro. Playing with latest RC3, am unable to repro. <shrug>
    Will update if I see the symptom again during real performances.
  • geoffmatters
    activ8 member
    Posts: 55
    Joined: Fri Sep 29, 2017 3:29 am

    Re: AVF decoder janky interactions, turns to solid colors

    by geoffmatters » Tue Aug 28, 2018 1:24 pm

    Stumbled on a repro.

    Load HAP and PJPG versions of the same clip
    Play HAP in layer 1
    Play PJPG in layer 1
    Switch PJPG from FFMPEG to AVF
    Switch it back to FFMPEG

    Result: goes solid black. The HAP version also plays as black. This persists even if I delete and recreate the layer. I can tell is it playing back because playhead progresses, and I can verify that there are pixels there by adding red to the layer.
  • geoffmatters
    activ8 member
    Posts: 55
    Joined: Fri Sep 29, 2017 3:29 am

    Re: AVF decoder janky interactions, turns to solid colors

    by geoffmatters » Tue Aug 28, 2018 1:31 pm

    Note that in its final state, the HAP clip is using AVF and the PJPG clip is using FFMPEG, and the output from both is a solid color frame (as with previous repro, the color seems to be taken from the video content which in this case is almost but not quite perfect black; in the )previous repro it was a dark red matching that content)
  • geoffmatters
    activ8 member
    Posts: 55
    Joined: Fri Sep 29, 2017 3:29 am

    Re: AVF decoder janky interactions, turns to solid colors

    by geoffmatters » Tue Aug 28, 2018 1:35 pm

    The machine for this was my MacBook Pro (Retina, 15-inch, Mid 2015) AMD Radeon R9 M370X 2048 MB Intel Iris Pro 1536 MB

    So, I have seen this bug on two different generations of macbook
  • geoffmatters
    activ8 member
    Posts: 55
    Joined: Fri Sep 29, 2017 3:29 am

    Re: AVF decoder janky interactions, turns to solid colors

    by geoffmatters » Thu Sep 06, 2018 4:31 am

    Simpler repro steps:

    load a pjpg mov into layer 1
    switch decoder to avf
    switch back to ffmpeg

    reproed 5/5 attempts, quitting m8 each time

    I have extra VTDecoderXPCService processes hanging around when m8 isn't running so quit them and try again

    still repros

    PS - double-checked that "automatic graphics switching" has been disabled this whole time

    MacBook Pro (Retina, 15-inch, Mid 2015) AMD Radeon R9 M370X 2048 MB Intel Iris Pro 1536 MB
  • geoffmatters
    activ8 member
    Posts: 55
    Joined: Fri Sep 29, 2017 3:29 am

    Re: AVF decoder janky interactions, turns to solid colors

    by geoffmatters » Thu Sep 06, 2018 4:55 am

    fresh restart, still repros
  • Pierre Guilluy
    garageCube team
    Posts: 239
    Joined: Mon Oct 12, 2015 1:50 pm

    Re: AVF decoder janky interactions, turns to solid colors

    by Pierre Guilluy » Thu Sep 06, 2018 11:45 am

    VTDecoderXPCService is the process that's launched by AVFoundation when dealing with legacy codecs that can't run in the same process.

    What I notice is how smooth the AVFoundation playback is compared with using FFmpeg. Do you experience the same on your side?

    I still can't reproduce on my 2017 MBP but I will test on a different system asap.
  • geoffmatters
    activ8 member
    Posts: 55
    Joined: Fri Sep 29, 2017 3:29 am

    Re: AVF decoder janky interactions, turns to solid colors

    by geoffmatters » Thu Sep 06, 2018 4:23 pm

    I also noticed that, I mentioned in the "august version issues" thread that performance regressed vs 2.9.2 (at least with the RC3 default ffmpeg decoder) for at least some of my HD files

    Thanks for hunting the "solid frame" problem.
